Problem
- Since the S/W of TP520 and TP530 are different, problems arise when installing unsuitable S/W.
Precautions
- TP520 and TP530 cases are the same.
- JOB program and UI Compatible without change.
- Differences in Win OS There may be differences in S/W. (see next)
- TP530 S/W cannot be installed on TP520 H/W. (Same for vice versa)
- EX) MV40.21 (for TP520) ≠ MV40.21 (for TP530)
- Installing another OS may occasionally cause TP system errors.
Differences between TP520 and TP530
division | TP520 | TP530 |
RAM | DDR2 256Mbyte (400MHz) | DDR3 1Gbyte (933MHz) |
Memory | NAND Flash 1GByte | eMMC Flash 8GByte |
OS | Window CE 6.0 (TP511 has the same S/W as TP520) | Window Embedded Compact |

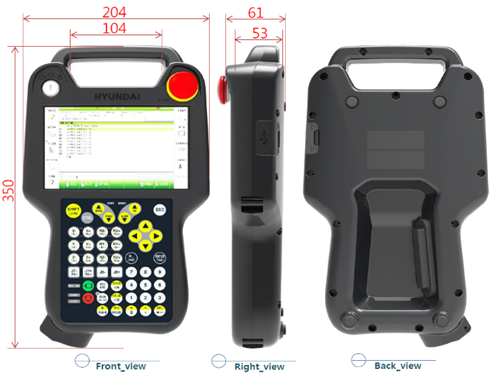

※ The appearance of TP520 and TP530 is the same.
